Product SRI

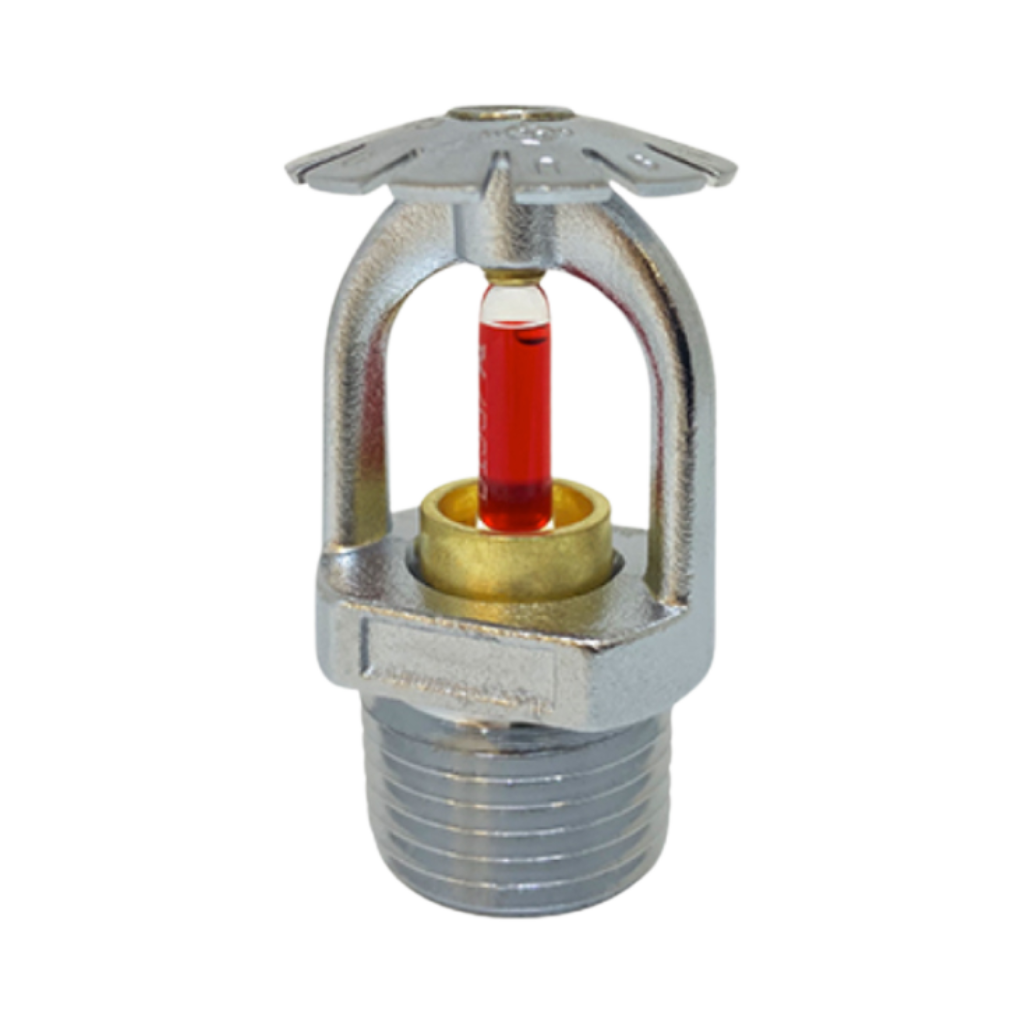

Sprinkler
Code No.
- SPR-58-573-9-1555SR-YT
| Code No. | Response Type | Temp. Rating (Celsius) |
|---|---|---|
| SPR-58-571-9-135SR-YT | SR | 57 |
|
SPR-58-573-9-1555SR-YT
|
SR | 68 |
| SPR-58-571-9-175SR-YT | SR | 79 |
| SPR-58-571-9-155QR-YT | QR | 68 |
| K Factor | 5.6 (80) |
| Nominal Thread Size | 1/2″ NPT |
| Max.Working Pressure | 175 PSI (12Bar) |
| Factory Test Pressure | 500 PSI (35Bar) |
| Min. Operating Pressure | 7 PSI (0.5 Bar) |
| Finish | Brass and Chrome Plated |
| Material Specification | |
|---|---|
| Deflector | Brass and Chrome Plated |
| Bulb | Glass |
| Load Screw | Brass and Chrome Plated |
| Seel | Brass and Chrome Plated |
| Frame | Brass and Chrome Plated |
| Seal Washer | Belleville Washer coated on both sides of Teflon Tape |
| Bulb Nominal Diameter | Standard Response 5.0mm, Quick Response 3.0mm |
