Product SRI
Hose Reel System
Available variations:
SIRIM, PSB approved BS EN671-1
- HRS038-SS-022-RD
- HRS038-MS-022-RD
- HRS038-MS-722-RD
- HRS038-MS-019-RD
- HRS038-MS-722-FS
- HRS037-MS-019-RD
- HRS037-MS-022-RD
- HRS036-MS-022-RD
- HRS036-MS-722-RD
- HRS036-MS-019-RD
- HRS035-MS-019-RD
- HRS035-MS-022-RD
- HRS061-MS-722-RD
- HRS060-MS-719-RD
- HRS056-MS-722-RD
- HRS055-MS-719-RD
BSI approved BS EN671-1
- HRS033-SS-022-RD
- HRS034-SS-022-RD
- HRS032-SS-022-RD
- HRS029-SS-022-RD
- HRS030-SS-022-RD
- HRS027-SS-022-RD
- HRS028-SS-022-RD
AS APPROVED TO AS1221
- HRS035-GI-019-RD
- HRS037-GI-019-RD
- HRS154-MS-600-RD
Features
- Side plates red epoxy powder finishing
- Automatic hose reel has integrated automatic stop valve which will open
after 2 revolution of the reel - Threaded Inlet connection
- Outlet connection for hose can be rotated for left and right direction
- Waterways made from non ferrous metals which ensure corrosion free*
- Maximum working pressure 12bar, test pressure 18bar (EN671-1)
- Maximum working pressure 10bar, test pressure 17bar (AS1221)
- Side plates available in stainless steel
SRI fire hose reels are tested and approved to European Standard EN671-1 by British Standards Institution and to Australian Standards AS1221 by QAS Australia.
| Code No. | Drum Size | Hose Diameter x Length | Depth of Hose Reel | Type | |
| SIRIM, PSB approved BS EN671-1 | |||||

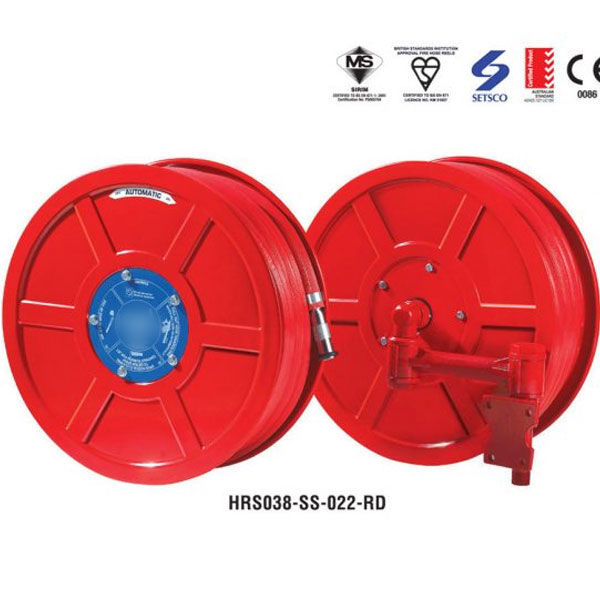

| HRS038-SS-022-RD | 22″(559mm) | 25mm x 30m | 350mm | Swing Manual | |
| Code No. | Drum Size | Hose Diameter x Length | Distance Between Drums | Type |
| HRS038-MS-022-RD | 22″(559mm) | 25mm x 30m | 350mm | Swing Manual |
| HRS038-MS-722-RD | 22″(559mm) | 25mm x 30m | 290mm | Swing Manual |
| HRS038-MS-019-RD | 19″(483mm) | 25mm x 30m | 350mm | Swing Manual |
| HRS038-MS-722-FS | 22”(559mm) | 25mm x 30m | 350mm | Swing Manual Flat Surface |
| HRS037-MS-019-RD | 19″(483mm) | 19mm x 30m | 350mm | Swing Manual |
| HRS037-MS-022-RD | 22″(559mm) | 19mm x 30m | 350mm | Swing Manual |
| HRS036-MS-022-RD | 22″(559mm) | 25mm x 30m | 310mm | Fixed Manual |
| HRS036-MS-722-RD | 22″(559mm) | 25mm x 30m | 240mm | Fixed Manual |
| HRS036-MS-019-RD | 19″(483mm) | 25mm x 30m | 310mm | Fixed Manual |
| HRS035-MS-019-RD | 19″(483mm) | 19mm x 30m | 310mm | Fixed Manual |
| HRS035-MS-022-RD | 22″(559mm) | 19mm x 30m | 310mm | Fixed Manual |
| HRS061-MS-722-RD | 22″(559mm) | 25mm x 30m | 290mm | Swing Automatic |
| HRS060-MS-719-RD | 19″(483mm) | 19mm x 30m | 290mm | Swing Automatic |
| HRS056-MS-722-RD | 22″(559mm) | 25mm x 30m | 240mm | Fixed Automatic |
| HRS055-MS-719-RD | 19″(483mm) | 19mm x 30m | 240mm | Fixed Automatic |
| Code No. | Drum Size | Hose Diameter x Length | Distance Between Drums | Type | |
| BSI approved BS EN671-1 | |||||
| HRS033-SS-022-RD | 22″(559mm) | 25mm x 30m | 290mm | Swing Manual | |
| HRS034-SS-022-RD | 22″(559mm) | 19mm x 30m | 290mm | Swing Manual | |
| HRS031-SS-022-RD | 22″(559mm) | 25mm x 30m | 240mm | Fixed Manual | |
| HRS032-SS-022-RD | 22″(559mm) | 19mm x 30m | 240mm | Fixed Manual | |
| HRS029-SS-022-RD | 22″(559mm) | 25mm x 30m | 290mm | Swing Automatic | |
| HRS030-SS-022-RD | 22″(559mm) | 19mm x 30m | 290mm | Swing Automatic | |
| HRS027-SS-022-RD | 22″(559mm) | 25mm x 30m | 240mm | Fixed Automatic | |
| HRS028-SS-022-RD | 22″(559mm) | 19mm x 30m | 240mm | Fixed Automatic | |
| AS APPROVED TO AS1221 | |||||
| HRS035-GI-019-RD | 19″(483mm) | 19mm x 36m | 310mm | Fixed Manual | |
| HRS037-GI-019-RD | 19″(483mm) | 19mm x 36m | 350mm | Swing Manual | |
| HRS154-MS-600-RD | 23.6” 600mm | 19mm x 36m | 210mm | Fixed Manual | |
