Product SRI
Foam Product

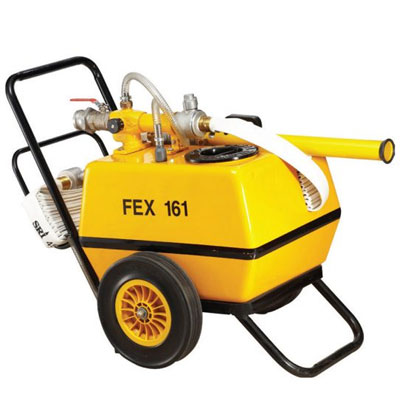

The foam liquid extinguisher on trolley is highly manoeuvrable and it is suitable for outbreaks of fire that cannot be dealt with by using portable extinguishers. It is effective on flammable liquid fire.
This is a self-contained foam production unit which only requires connection to suitable water supply (minimum water supply required is 180 LPM at 5 bar).
Available Variations:
- FEX161-FG-120-YW
Description
Standard Features
- 2 x 15m 1-3/4″ (45mm) fire hose with Aluminium BS Coupling
- 225 LPM Foam Indcutor with pickup tube
- 225 LPM Low Expansion branchpipe
- Control valve (2″ ball valve)
- 120L AFFF, foam concentrate and fibre glass tank on trolley
Application
- Protection of oil storage installation loading stations, paint and solvent stores.
| Performance Data for FEX161-FG-120-W | |||||
| Input Pressure at Inductor | Total Water Flow | Foam Produced | Approximate running time (min.) Inductor Setting | Foam Throw from Branchpipe | |
| Bar | Litre/Min | Litre/Min | 3% | 6% | m |
| 5 | 180 | 1800 | 22 | 11 | 14 |
| 6 | 197 | 1970 | 20 | 10 | |
| 7 | 213 | 2130 | 18 | 9 | 17 |
| 8 | 228 | 2280 | 17 | 8.5 | |
| 10 | 255 | 2550 | 16 | 8 | 20 |
